Item Name: Push Button Switch; Type: Latching/Momentary; Contact Type: (1NO)
(Rated) Voltage & Current: 250V 2A; Light Voltage: 12/24V; Light Color: Blue Red Green Yellow White
Mounting Hole Diameter: 12mm; Head Shape: Flat Head
Widely Application : Great for Box Mod, Car Boat Vehicle push button switch12V , Kill Switch ,Horn Button Switch, PC Power Switch or any circuit controls ,electronic DIY equipment
Momentary type, 1NO contact, 4 terminals.

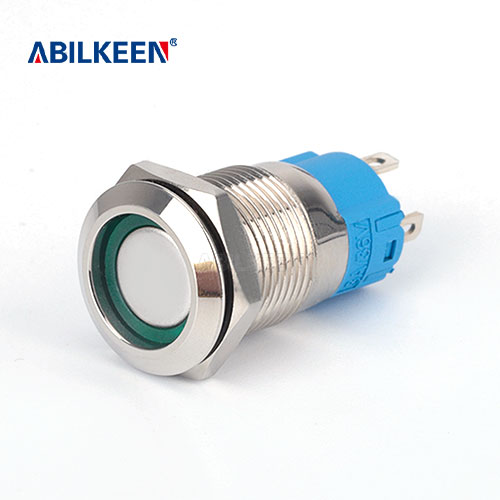

This metal push button switch is suitable for 12mm diameter mounting hole.
Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls.
Action Type: Latching / Momentary Type
Head Shape: Flat /High Head
Contact: (1NO)
Switch Rating: AC 250V 2A
Switch Color: Silver
Lamp Voltage: 12/24/110/220V
Material: Black Aluminum oxidation,Copper Nickel Plating or stainless steel
What's the Pushbutton Switch
This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated LED ring. It is a SPST with 19mm threading. These buttons are rated up to 2A and 250VAC while the LED is rated for 5-220V. The higher the voltage value, the brighter the LED. You can add a wire connector, then you don't need to solder the terminals, make installing very easy.
What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed
What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls
What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water
What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you
|
Product Name |
Push Button Switch |
|
Model |
IB12E-P11-E/S |
|
Mounting Hole |
12mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
4 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
Wiring Harness |
item No.: IB12E Harness |
|
What You Get |
1X 12mm, LED Push button switch |
