LED voltage: 12V or (3V,5V,24V,110V,220V)
Mounting Hole Size : Φ19mm(3/4")
Full Actuator illuminated 12V
Shell Material: Brass nickel / Stainless Steel
Function: Momentary/Latching
Bi-color, Tri-color led is available

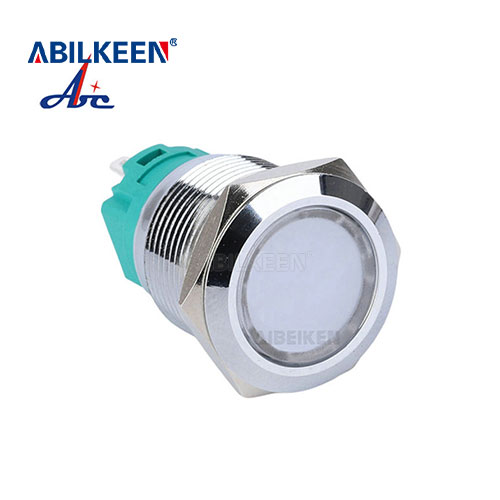

Metal Momentary Push Button Switch
IP65 Protection
The shell is full metal and there's a rubber ring to seal the mounting which make the switch achieve IP65 Waterproof degree.
It can be used in humid environment, such as boat, kitchen, outdoor etc.
Long Work Life
The Metal Shell is not easy to damage.
The Mechanical work Life is 500,000 cycles.
Silver alloy contact makes the electrical work life more than 100,000 times.
High quality LED & 5 Colors
The LED is pure and bright.
There are 5 colors for your choice: green, blue, orange, red and white.
Wide Appliance
Use this to replace the power switch for many appliance.
Bright LED and metal appearance make the switch very cool. Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
Household Appliance Control
It is also a good choice to use it as a replacement switch of household Appliances.
Such as table lamp switch, PC switch, Audio switch.
Auto Refit
Use this switch to replace the light switch, horn switch or other control switches in the cars, boats, trucks etc.
|
Product Name |
Push Button Switch |
|
Model |
IB19E-P11-C |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
5 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Brass nickel/Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
Wiring Harness |
item No.: IB19E Harness |
|
What You Get |
1X 19mm, LED Push button switch |
Note: If you need Customized LED, please inform us by mail:
