| Rating | 3A 0-250V AC/DC |
| Protection | IP65 IK08 |
| Operation | Momentary/Latching |
| Structure | 1NO 1NC |
| Mounting Hole | 19mm |
About this item
Mounting Hole: 19mm(3/4"); Head Type: Flat Head; Structure: 1NO 1NC; LED Light: 3A,12V-24V; Halo Ring Blue; LED life: 40,000 hours
Momentary Switch: Press the button and hold--ON, Release--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
4 wiring methods: 1NO 1NC; LED light can be always on, or illuminates when the device is working; 5 brass terminals for connecting or soldering just as you like
Protection Degree: IP65 Waterproof and dustproof; IK08 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
Widely Applications: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
What's the Pushbutton Switch

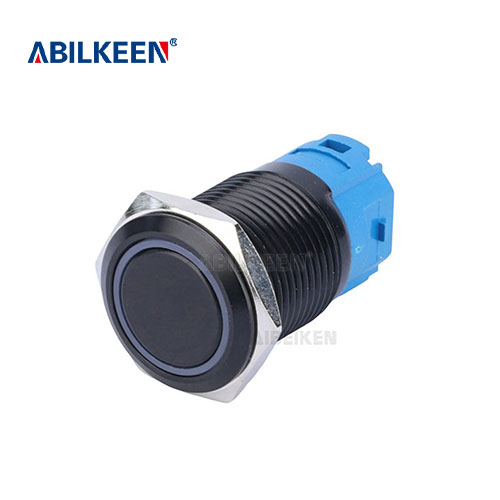

This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated blue LED ring. It is a SPDT with 19mm threading. These buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. The higher the voltage value, the brighter the LED. You can add a wire connector, then you don't need to solder the terminals, make installing very easy.
What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed
What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls
What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water
What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you
|
Product Name |
Push Button Switch |
|
Model |
IB19E-P11-E |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
5 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Brass nickel/Stainless Steel/Aluminum Oxidation |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
Wiring Harness |
item No.: IB19E Harness |
|
What You Get |
1X 19mm, LED Push button switch |
