Product Type

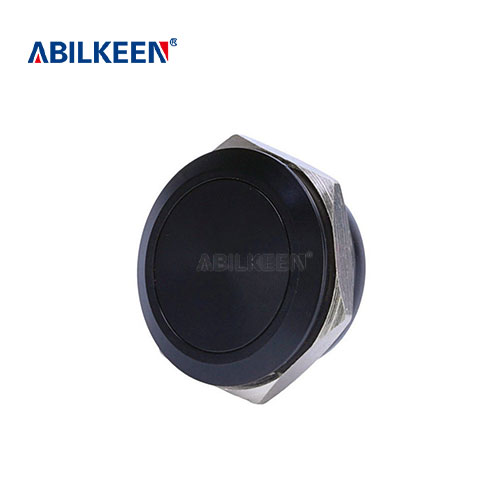

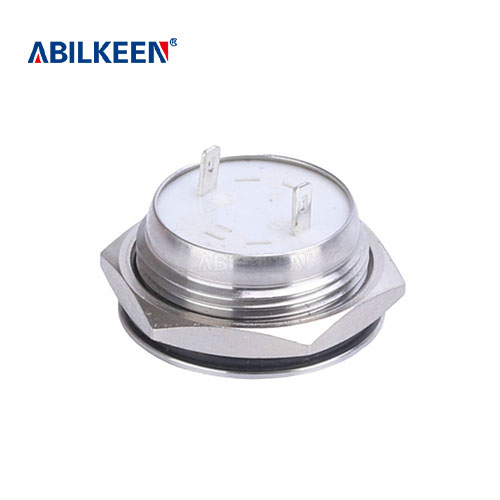

IB19T1 19mm push button switch

19mm IP67 Momentary Ultra Short Button Switch with Ring Light RGB LED Black Metal Push Button Switch

Diameter M19
Operation type Momentary (Auto reset)
Illuminating type Non-illuminated
Shell Material Brass nickel / Stainless steel / aluminum oxide
Inquire Now

Specification

12 Volt Illuminated Lighted 1NO IP67 Waterproof 12V Blue Led stainless steel Momentary Metal Push Button Switch



Material analysis of metal push buttons

Metal push buttons are typically made of various materials, each with its own characteristics and advantages.

Stainless steel is a common choice for metal push buttons due to its durability, corrosion resistance, and aesthetic appeal. It can withstand harsh environments and is easy to clean. Stainless steel buttons are often used in industrial and outdoor applications.

Brass is another popular material for metal push buttons. It has a warm and classic look, and is also corrosion resistant. Brass buttons are often used in decorative and high-end applications.

Aluminum is a lightweight and durable material that is often used for metal push buttons in applications where weight is a concern. Aluminum buttons can be anodized to achieve different colors and finishes.

In addition to these materials, some metal push buttons may also be made of other metals or alloys, depending on the specific application requirements.

When choosing a metal push button, it is important to consider the material's properties, such as durability, corrosion resistance, and aesthetic appeal, as well as the application environment and intended use.

Model Specification

Model NO.

T1 series push button switch

Mounting diameter

19mm

Head shape

Flat head

Switch Combination

1NO

Operation type

Momentary

Rated Current

2A 250VAC

Illuminating type

Non-illuminated

Illuminating color

Red,green,blue,yellow,orange,white,purple

Lamp voltage

2V/3V/6V/12V/24V/36V/110V/220V/250V

Shell material

Brass nickel / Stainless steel / aluminum oxide

Contact Resistance

50mΩ max

Insulation Resistance

2000VAC

Dielectric Intensity

2000VAC

Accessories

Nut, Rubber Waterproof O-ring

Drawing
