| Mounting Cut Hole | 28mm |
| Operation | Momentary/Latching |
| Structure | 1NO1NC |
| Insulation Resistance | 1000MΩ Min |
| Contact Resistance | 50 mΩ max |
About this item

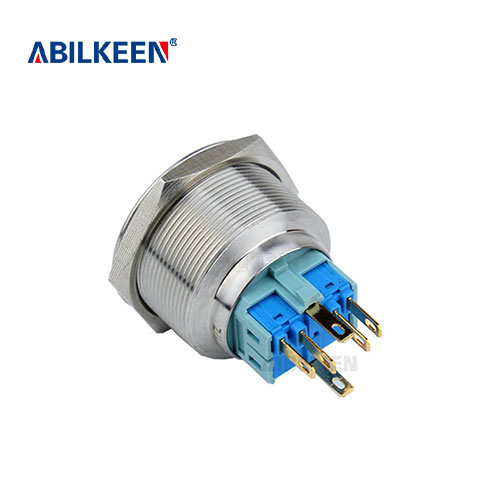

28mm push button Blue LED light switch with IP67 & IK10 Protection, can be used in wet or dusty environment.
This on off ac switches can come with 5 pins wire terminal with socket plug, don’t need soldering, make your work simple and easy! The LED light can be always on or only on when device working, it depends on how you connect the wire.
On/off push button switch type: Momentary push button and Latching push button for your choice. Momentary button switch operation method: press and hold the button –>ON, Release the button –> OFF. Latching button switch operation method: press the button–>ON, press the button again–> OFF.
Push button light switch mounting hole: 28mm; Rated current and voltage: 5A / 12V.
Year Warranty!!! This 12 volt push button switch is a best choice for door bell, car motorcycle improvement, boat horns, auto starter switches, and other applications in which temporary activation of an electrical current is needed.
The IB28S-P11-E switch’s momentary operation allows for quick and precise control, making it ideal for applications where a temporary connection is needed. Whether it’s activating a power source or triggering a specific function, this switch provides the responsiveness and reliability required for critical operations. Its metal construction not only ensures durability but also provides a sleek and professional appearance, making it suitable for a wide range of consumer and industrial products. With its compact 25mm size, the switch can be seamlessly integrated into various designs without compromising on performance or functionality.
|

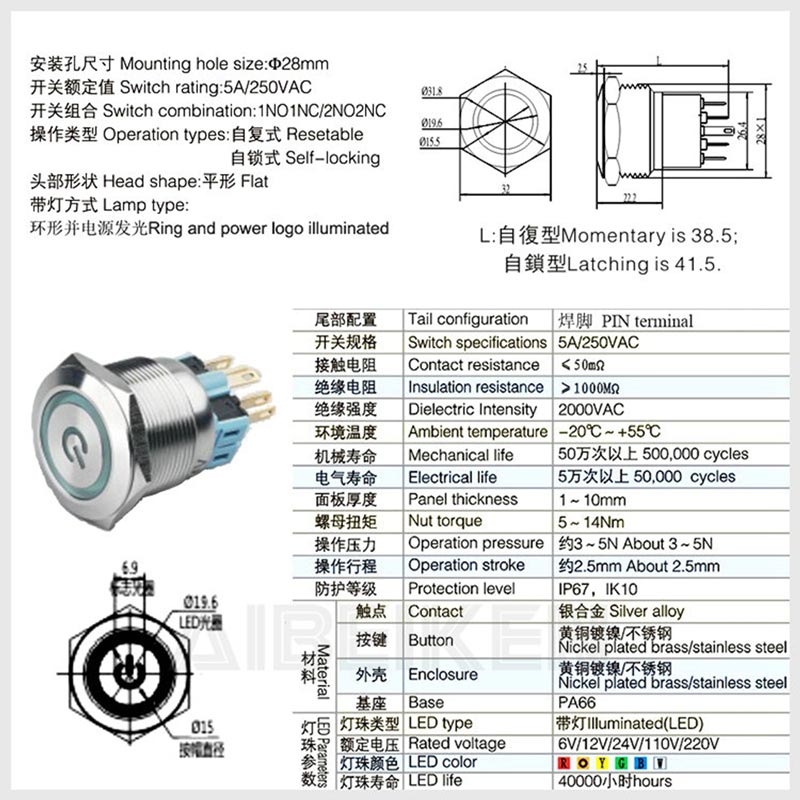

Product Name |
28mm Metal Momentary Push button Switch |
|
Model |
IB28S-P11-E-power |
|
Mounting Hole |
28mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO1NC |
|
Head Type |
Flat /High round head |
|
Terminal type |
6 Pin Terminals |
|
Enclosure Material |
Stainless steel/Brass/Aluminum |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Illuminated Type |
Ring and Power logo Led |
|
Protection Level |
IP67, IK10 |
|
Led Color |
Blue,Red, Green, Yellow,White,Bi-color |
|
Product type |
customized logo metal push button switch |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Operating Temperature |
-20°C ~+55°C |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
