| Diameter | M28 |
| Operation type | Momentary (Auto reset) |
| Illuminating type | Non-illuminated / Ring LED / Power logo |
| Shell Material | Brass nickel / Stainless steel / aluminum oxide |

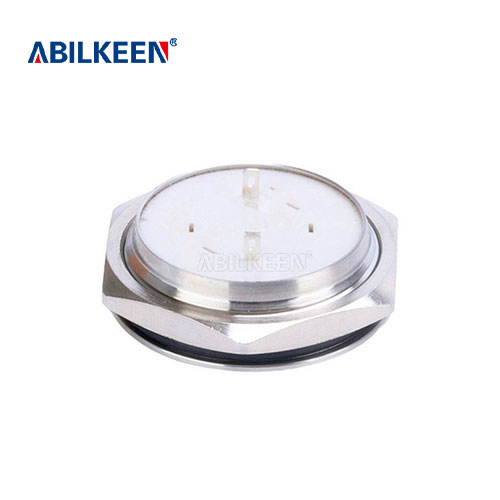

28mm Ultra-Thin Type Metal Push Button Switch Flat Head Momentary Push Button with LED Ring
Push Button Switch NONC Momentary Maintained
NC contact: normally in the on state, press and then open.
NO contact: normally in the off state, press and then connect.
Momentary switch: press it, release it by hand, and the button will automatically spring back to its original position.
Maintained switch: press it, release it by hand, press it again, and the button will spring back to its original position.
Characteristic
Easy to install - Optional with wire connector connection to ensure contact performance
Wide Application ,can be used in wet or dusty environment.
Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;Large contact surface
ON/OFF ILLUMINATED PUSH BUTTON SWITCH
2/4 pin metal momentary auto reset push-button switch, push it, remain on, release the finger, get off.
Mounting Hole: 12mm/16mm/19mm/22mm/25mm/30mm is optional
EASY TO CONNECT & DURABLE
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
LIGHTED Slef reset PUSHBUTTON SWITCH
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
WATERPROOF MARINE SWITCH
This momentary push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
|
Model Specification |
|
|
Model NO. |
T1 series push button switch |
|
Mounting diameter |
16mm |
|
Head shape |
Flat head |
|
Switch Combination |
1NO |
|
Operation type |
Momentary |
|
Rated Current |
2A 250VAC |
|
Illuminating type |
Non-illuminated / Ring LED / Power logo |
|
Illuminating color |
Red,green,blue,yellow,orange,white,purple |
|
Lamp voltage |
2V/3V/6V/12V/24V/36V/110V/220V/250V |
|
Shell material |
Brass nickel / Stainless steel / aluminum oxide |
|
Contact Resistance |
50mΩ max |
|
Insulation Resistance |
2000VAC |
|
Dielectric Intensity |
2000VAC |
|
Accessories |
Nut, Rubber Waterproof O-ring |
