| Mounting Cut Hole | 8mm/10mm |
| Operation | Momentary/Latching |
| Structure | 1NO |
| Switch rating | 1A |
| Terminal type | Pin Type |

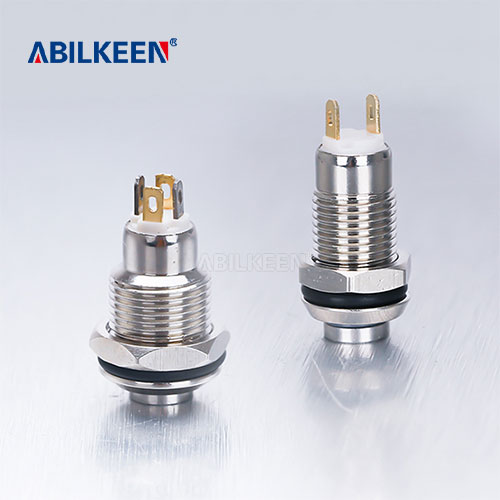

8MM Metal PUSH BUTTON SWITCH Momentary Waterproof Horn Ball Head Car Engine
Product Name: Mini Push Button Switches; Action Type:Reset(Momentary)/ Self-locking(Latching).
Poles: SPST; Rating Voltage: AC 2A / 250V; Terminals Quantity: 2/4 Pins.
Working Environment Temperature: -20°C to 55°C.
Material: Brass & Aluminum Oxide ;
LED Light : With/Without
Contact Type: SPST NO
Mounting Hole Dia: 8mm /10mm
Widely used in electrified railway and power grid wire insulation protection, cable snap bushing insulated protection reliable.
【 Main Function 】High grade 8mm mini momentary push button swicth, can be used for horn, power, start switch of your vehicle
【High Quality & Waterproof】 1A 24V Momentary push start button, made of high quality materials and exquisite CNC housing, which is explosion-proof and shock-proof. Quality stainless steel material, waterproof and rustproof. Such a practical tool you will need it!exquisite CNC housing, explosion-proof and shock-proof
【 Easy Install 】Fast installation, for your vehicles modification. This is a choice if you are in need of a momentary push button!
【 Safety & High Performance】Built-in medical waterproof ring, IP 65 professional waterproof, and reliable, which is very great for outdoor use. Reliable quality and delicate workmanship persuades you to take this one to replace the old car start stop button switch
【 Quality Guaranteed 】100% Brand new momentary push button switch. Professional, premium aftermarket replacement. This is the replacement for the broken one. We will provide you excellent customer service and 100% satisfaction . BUY WITH COFIDENCE!
|
Product Name |
Push Button Switch |
|
Model |
8-10mm Push Button Switches |
|
Mounting Hole |
8mm/10mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO |
|
Head Type |
Domed/High round head |
|
Terminal type |
Pin Terminals |
|
Led |
With/Without |
|
Enclosure Material |
Nickel-plated Brass & Aluminum Oxide |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
Key Word |
Mini Push Button Switches |
