| Dimension | 120x120x38 mm (4.72x4.72x1.49 in.) |
| Mounting hole distance | 105 mm (4.13 in.) |
| Screws hole diameter | 4.3 mm (0.17 in.) |
| Wire Gauge | AWM 1007 22AWG |
IB-A12038 120mm 110v/115v/220v/230v/380v AC Axial Fan 120x120x38 (4.5 inch) 50/60hz Compact 12038 Cooling Fan With 7 blades
High airflow fan designed for doorway, wood stoves, room to room, fireplace, greenhouse, grow tent, server rack cooling, computer case, DIY mount, overheat protection.
Fan Speed Controller with ac power switch to set the fan’s speed to airflow levels for various environments. Length: 6 Feet | Input: AC 100 to 240V 50/60HZ | Output: 4V-12V/ 2A AC.
Bual-ball bearings, allowing it to be mounted horizontally or vertically to cool various electronics and components without worrying the lifespan.
Warranty: One-year quality assurance. Please contact us If the product has any quality problems, it will be replaced within one year.
Exhaust replacement fan size: 120 x 120 x 38 mm ( 4.72 x 4.72 x 1.5 in. ) | 2500-4500rpm speed | 100-180 CFM airflow | 39-54dBA noise | Power: less than 3W at slowest speed ; 11 W at full speed.
Features
110 to 120V AC;Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products
1 Piece fan include fan grill and mounting screws & nuts; 1* Power Plug( 59 inches)；1*Wiring head
Under 50Hz; the Speed is 2600RPM; Airflow is 109CFM; Current is 0.35A; Power is 25W; Noise is 40dBA
Under 60Hz; the Speed is 2900RPM; Airflow is 118CFM; Current is 0.26A; Power is 19W; Noise is 41.6dBA
|

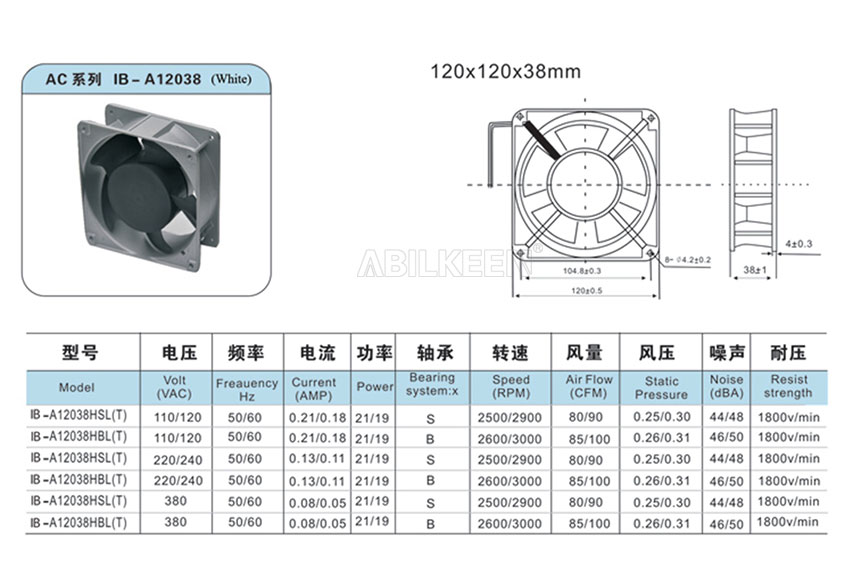

Product Name |
Cooling Fan |
|
Model |
IB-A12038 |
|
Size |
120*120*38mm |
|
Bearing Type |
Sleeve / Dual ball bearing optional |
|
Voltage |
110V/220V/380V optional |
|
Frequency |
50/60HZ |
|
Speed |
2500RPM |
|
Air Flow |
75CFM |
|
Pressure |
6.3mmH2O |
|
Noise |
44dBA |
|
Wires |
2 wires |
|
Operating Temperature |
Sleeve -10℃ to 70℃, Dual ball bearing -20℃ to 80℃ |
|
Working Voltage |
Rated voltage+-15% |
|
Life Time |
Sleeve : 30000hours; Dual ball bearing: 80000hours |
