Product Type

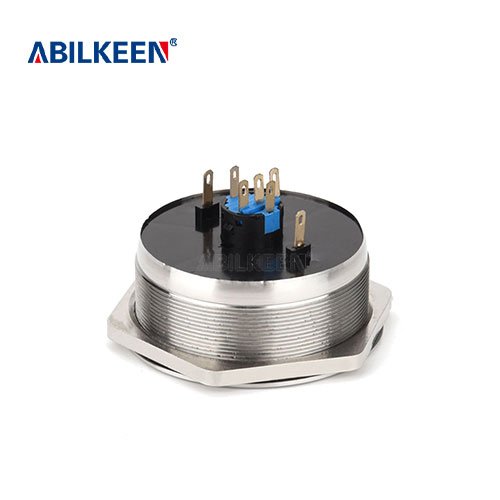

IB56A-P11-C 56mm Large Push Button Switch

IB56A-P11-C Big size 56mm 250V Waterproof IP67 Stainless Steel 12V 24V 110V 220V Ring LED Metal Push Button Switch

1.Mounting hole: 56mm

2.New designe, large big surface to press

3.Custom symbol is available

4.Brand: ABILKEEN

Inquire Now

Specification

Product name: Push Button Switch

Condition: New

Material: Brass nickel plated / Stainless steel LED

Color: Blue White Yellow Red Green Orange Operation

Type: Momentary type push it-on, release it-off Switch

Rating: 5A/250VAC LED

Voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: Flat round head

Mounting hole size : 56mm



Introducing our Big Size 56mm 250V Waterproof IP67 Stainless Steel 12V 24V 110V 220V Ring LED Metal Push Button Switch, a high-quality and durable switch designed for a wide range of applications. Made of brass nickel-plated material, this switch is not only strong and durable but also has a high-grade appearance and a nice touch feeling.

One of the key features of this switch is its suitability for outdoor use. It is equipped with a rubber ring and hexagonal nut fixed, making it anti-dust and waterproof. This ensures that the switch can withstand harsh outdoor conditions, making it ideal for use in outdoor equipment and machinery.

In addition, the switch features copper plating silver terminals, providing excellent conductive properties for reliable performance.    The momentary type design allows for easy operation - simply push it on and release it off. The metal button head is durable and can withstand long-term use, making it suitable for applications that require frequent and prolonged pressing.

With a big size of 56mm, this switch is highly visible and easy to operate, making it suitable for a wide range of industrial and commercial applications. The LED ring adds a modern touch and provides visual indication of the switch status, enhancing its usability and safety.

Whether you need a switch for industrial machinery, outdoor equipment, or commercial applications, our Big Size 56mm 250V Waterproof IP67 Stainless Steel 12V 24V 110V 220V Ring LED Metal Push Button Switch is the perfect choice. Its robust construction, waterproof design, and high-grade appearance make it a reliable and versatile solution for your switching needs.

Product Name

Push button switch

Model

IB56A-P11F-C

Mounting Hole

56mm

Operation Type

Momentary

Switch Combination

1NO

Head Type

Flat head

Terminal type

7Pin terminal

Enclosure Material

Stainless steel

Delivery Days

3-7 days after payment received

Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Wire Connector / Wire soldering

Acceptable and with fast shipping

Accessories

Nut, Rubber ,Waterproof O-ring

Drawing
