2Pin Heavy Duty Toggle Switch

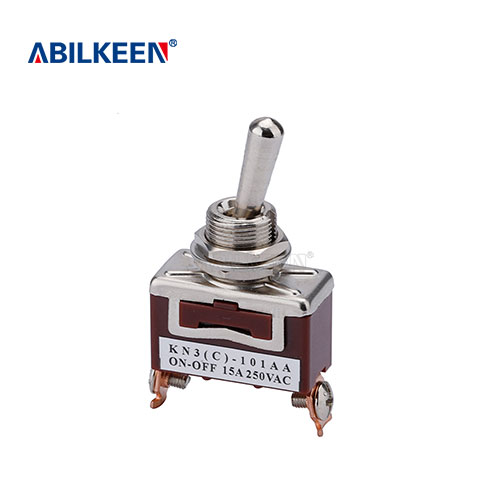

KN3(C)-101 ON-OFF 2Pin Screw terminal 15A 250V Electrical Heavy Duty Toggle Switch

Mounting Hole	M12
Operation Type	ON-OFF
Rating	20A 125VAC; 15A 250VAC
Dielectric strength	1000 V RMS (min)

Inquire Now

Specification

KN3(C)-101AA

Fashion Design and Good Price Spst ON-OFF 2Pin Screw terminal 15A 250V Electrical Heavy Duty Toggle Switch

Switch Type: On/Off 2Pins

Power: 15A 250VAC / 20A 125VAC.

Material (External): Metal and Plastic.

Mechanical life: more than 50.000 cycles.

Environment temperature:- 25 degrees ~ 80 degrees.

Feature: The SPST toggle switch is made of metal and bakelite.The shaft and bracket are both made of Brass Material.Delicate appearance with strong Construction.Look chic and high-end on your equipment.

Function: SPST toggle switch with 2 pins, SPST design (single pole single throw), designed with rocker style, easy to turn ON/OFF.The rating is 15A 250VAC/20A 125VAC.

Installation: Mounting hole size is 0.48 inches (12.2MM).Each of the terminals has a PCB terminal for quick connections.(Screw terminal is available)The thickness of Terminals is 0.8mm.

Mechanical life: more than 100,000 cycles. Electrical life: more than 10, 000 cycles.

Application: SPST toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp, fog lamps, dome light etc.

Toggles switches range in ABILKEEN from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

They are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series.

Product Name	Toggle Switch
Items	KN3(C)-101AA
Mechanical life	More than 50.000 cycles
Electrical life	More than 10,000 cycles
Operating Temperature	-25°C ~+80°C
Customized colored housing or Connector	Acceptable and with fast shipping
Accessory hardware	Metal washer, Nameplate, Mounting nut
QTY/Box	20 pcs
Waterproof Cap	Waterproof Cap item No.: WPC-TS02
