Product Type

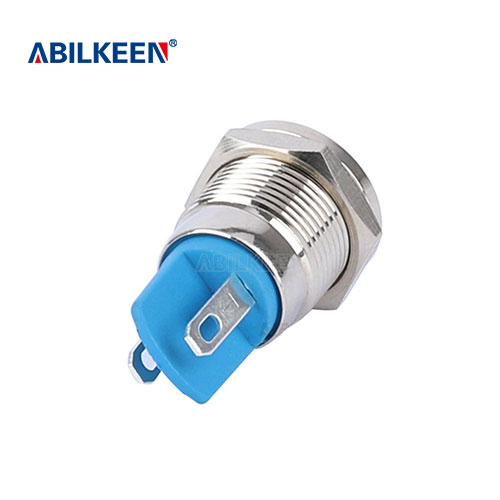

IB12S-PX-D Panel Signal Lamp 220V

IB12S-PX-D signal lamp is made of brass metal for household appliances

Inquire Now

Specification

IB12U-PY-D 12v durable waterproof red LED indicator lamp with solder terminal

It can be used as signal indication, warning signal, accident signal and other signals

Can engrave customer’s logo according to customer requirements

Mounting hole diameter: 1/2 inch/12mm

IP65 waterproof protection can be used in wet or dusty



Features

The integrally formed metal shell has high structural strength, fallproof, anticollision, and it is more environmentally friendly.

These panel mount indicator lights are sure to give you a visual status cue for each index signal, anticipating signals, distress signals and other index signals.

With wire or without, surface mount, thread mount options.

Popular lamp in the auto aftermarket, warm welcomed by most customers.

Product Name

Metal Indicator Light

Model

IB12U-PY-D

Mounting Hole

12mm

Head Type

Flat chamfer head

Terminal type

Pin terminal

Enclosure Material

Nickel-plated Brass

Delivery Days

5-7 days

 Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Wire Soldering

Acceptable and with fast shipping

Voltage

3/6/12/24/36/48/110/220V

Note: If you’d like Green actuator, please inform us by mail,thanks!

Drawing
