| Size | Ø 16/19mm |
| Switch Rating | 5A/250VDC |
| Front shape | Flat Head with key |
| Contact configuration | 1NO1NC |
| Operation type | Latching |
| Crust material | Nickel Brass/Stainless steel |
| Grades | IP65 |
| Terminal type | Pin terminal |

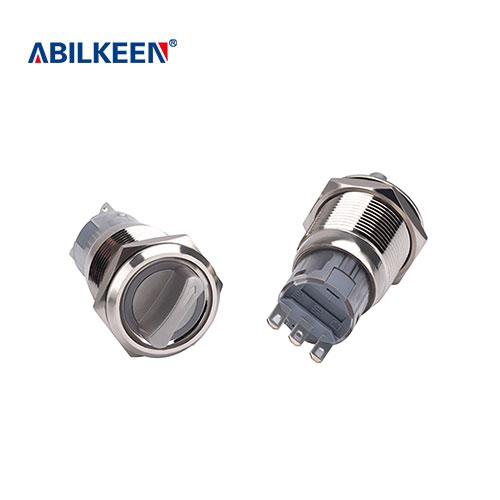

IB16U1-X11Z-2 change over switch rotary universal cam switch 2-position stay put selector pushbutton switch
When it comes to security and personal transportation vehicles, the IB16U1-X11Z-2 key lock switch is a versatile and reliable choice. This rotary universal cam switch offers a 2-position stay put selector and pushbutton switch, making it ideal for a wide range of applications. Whether it's for securing access to sensitive areas or controlling the operation of personal transportation vehicles, this switch provides the functionality and security needed for peace of mind.
One of the standout features of the IB16U1-X11Z-2 switch is its IP66 protection class. This means it is dustproof and waterproof, ensuring excellent performance even in challenging environments. The professional IP66 protection grade also provides resistance to rust and corrosion, making it suitable for outdoor and industrial use. The switch's surface is designed to remain bright and corrosion-resistant, further enhancing its durability. Additionally, its flame-retardant and heat-resistant properties contribute to a long service life, making it a reliable choice for long-term use.
In addition to its robust protection features, the IB16U1-X11Z-2 switch boasts highly conductive and durable silver-plated pin contacts. This design ensures safe and reliable electrical connections, crucial for security and transportation applications. The metal key knob switch design further enhances its durability, providing peace of mind that the switch can withstand frequent use and harsh conditions. With its focus on safety, durability, and reliability, the IB16U1-X11Z-2 key lock switch is a standout choice for anyone seeking a secure and long-lasting solution for their security and transportation needs.
In conclusion, the IB16U1-X11Z-2 key lock switch offers a combination of security, durability, and reliability that makes it an excellent choice for a wide range of applications. Its IP66 protection class, corrosion resistance, and highly conductive silver-plated pin contacts ensure that it can perform effectively in challenging environments. Whether it's used for security applications or personal transportation vehicles, this switch provides the peace of mind that comes with a secure and long-lasting solution.
|
Certification |
CE |
|
Whether the smart |
NO |
|
Place of Origin |
China |
|
Brand Name |
ABILKEEN |
|
Max. Current |
3A |
|
Max. Voltage |
250V |
|
Mechanical Life |
500000 CYCLES |
|
Product Name |
Rotary Switch |
|
Mounting Hole Size |
16/19mm |
|
Operation Type |
Latching |
|
Switch Combination |
1NO1NC/ 2NO2NC |
|
Head Type |
Flat round with selector |
|
Terminal type |
3/6 Pin Terminals |
|
Enclosure Material |
Stainless steel |
|
IP degree |
IP65 |
|
Product type |
on off rotary switch |
