What is a piezo switch？

In the vast realm of electrical components, piezo switches play a unique and significant role. These unassuming devices, though not as commonly known as traditional mechanical switches, are integral to a wide range of modern technologies. Here is a detailed explanation:

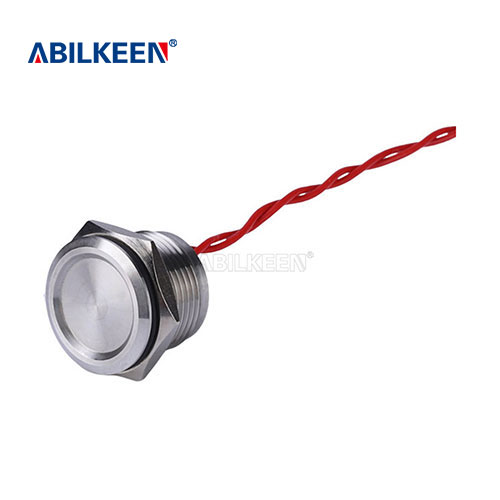

16MM IP68 Waterproof Piezo Switch Momentary

Working Principle

• The piezoelectric effect is the phenomenon where certain materials generate an electric charge when subjected to mechanical stress or deformation. Conversely, when an electric field is applied to these materials, they undergo a slight change in shape. Piezo switches are designed to take advantage of the first aspect of this effect. They contain piezoelectric materials such as quartz, certain ceramics, or polymers. When the switch is pressed or actuated, mechanical force is applied to the piezoelectric material. This causes the material to deform slightly, and as a result, an electric charge is generated. This generated charge is then used to trigger an electrical circuit, effectively turning the switch "on" and allowing current to flow or initiating a specific electrical operation.

Construction

• Piezo switches typically consist of a piezoelectric element, which is the core component responsible for generating the electrical signal in response to mechanical force. This element is often sandwiched between two conductive electrodes. The electrodes are used to collect and transfer the electric charge generated by the piezoelectric material to the external circuit. The entire assembly is usually housed in a casing or enclosure to protect the internal components from physical damage and environmental factors. The casing also provides a surface for the user to interact with, such as a button or a touch - sensitive area, which when pressed, applies the necessary force to the piezoelectric element.

Advantages

• Long Lifespan: Since they have no moving parts that can wear out, piezo switches can last for a very long time, even with frequent use. This makes them highly reliable and suitable for applications where durability is crucial.

• High Sensitivity: They can detect very small amounts of force, allowing for precise control and operation. This makes them ideal for applications that require fine - tuned input, such as in scientific instruments or high - precision machinery.

• Fast Response Time: Piezo switches can generate an electrical signal almost instantaneously when force is applied, enabling rapid switching and control of electrical circuits. This is beneficial in applications where quick response is essential, such as in high - speed data transfer or real - time control systems.

• Compact Size: They can be manufactured in very small sizes, making them suitable for use in portable electronic devices and other applications where space is limited.

Applications

• Consumer Electronics: They are used in various devices like mobile phones, tablets, and laptops. For example, in some mobile phone keypads, piezo switches are used to provide tactile feedback when a button is pressed. In laptops, they can be found in the touch - pads or function keys.

• Industrial Controls: In industrial settings, piezo switches are used in control panels to operate machinery and equipment. They are preferred in some cases because of their high reliability and long - life span, even under frequent use and harsh environmental conditions.

• Automotive Industry: They are used in car interiors for controlling various functions such as power windows, seat adjustments, and dashboard controls. Their compact size and precise operation make them suitable for use in the confined spaces and complex electronic systems of modern vehicles.

• Medical Devices: Many medical devices also incorporate piezo switches. For instance, in some handheld medical instruments, piezo switches are used to control the device's operation modes or to adjust parameters. They are also found in certain diagnostic equipment and surgical tools.

In conclusion, piezo switch uses the piezoelectric effect: mechanical stress on its material generates charge to trigger circuits. Compact, with long lifespan, high sensitivity and fast response, it's used in various fields.
